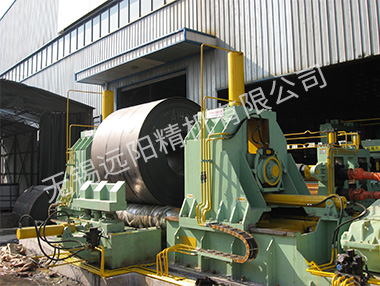

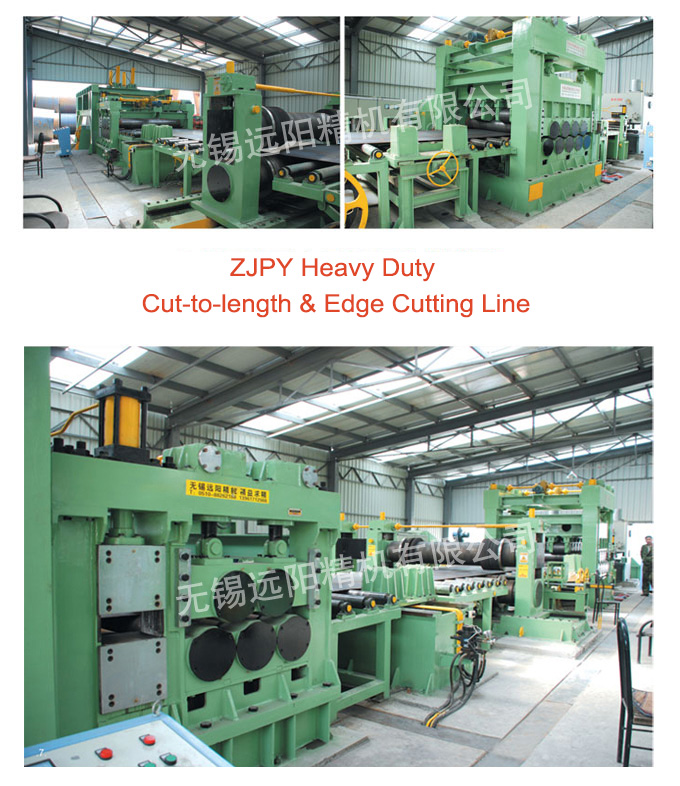

ZJPY Heavy Duty Cut-to-length & Edge Cutting Line
>> Your position >> Products
★ Cutting accuracy and precision thanks to the machine solidity
★ High quality on flatness
★ High precise cut to length control
★ High quality on cutting
★ High efficiency for production
★ Delightful man-machine interface
|
|
|
Specifications
Model |
ZJPY11/4-12×2000 |
ZJPY11/4-16×2100 |
ZJPY9/7-25×2300 |
Coil Material |
δs≤230N/mm2,Hot-rolled Coil,Stainless Steel Coil |
Coil Thickness |
3.0~12.00 |
4.0~16.0mm |
8.0~25.0mm |
Cutting Edge Thickness |
≤10.0mm |
≤12.0mm |
≤16.0mm |
Coil Width |
800~2000mm |
1000~2100mm |
1000~2300mm |
Coil Weight |
≤25T |
≤30T |
≤40T |
Coil O.D |
φ610mm~φ820mm |
φ610mm~φ820mm |
φ610mm~φ820mm |
Cutting Range |
500~12000mm |
500~12000mm |
500~12000mm |
Cutting Accuracy |
±1.5mm |
±1.5mm |
±1.5mm |
Line Speed |
0~25m/min |
0~25m/min |
0~25m/min |
Electrical Control System |
PLC Automatic control |
