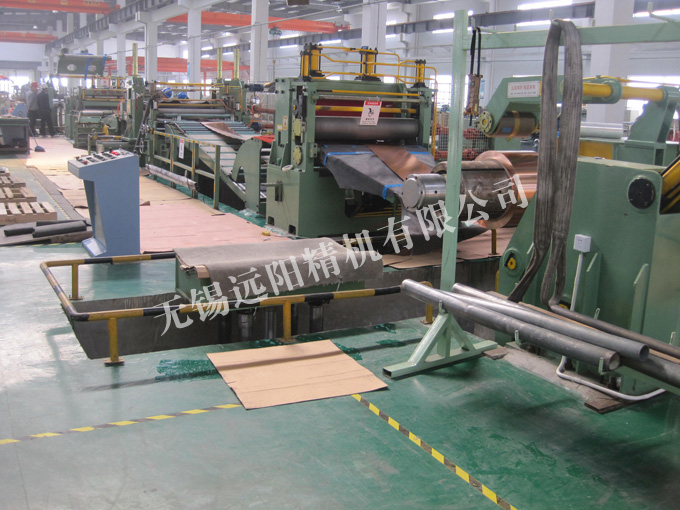

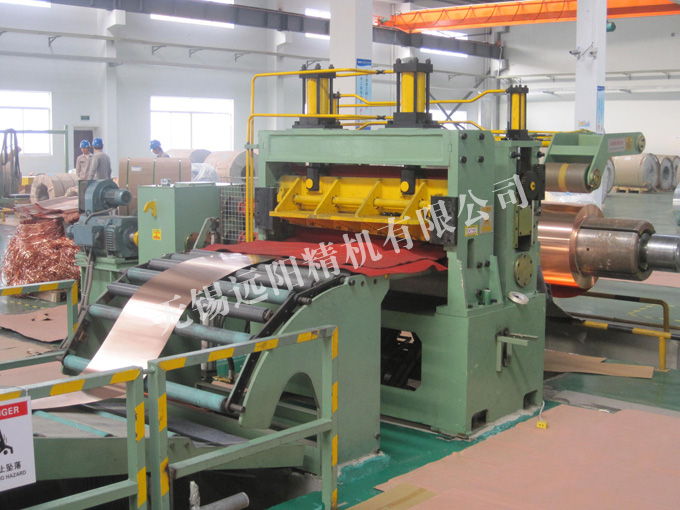

SZJY Automatic Non-ferrous metals High speed Slitting Machine Line
>> Your position >> Products
Specifications
Model |
SZJY0.2-1.5×600 |
SZJY0.3-3.0×1250(1600) |
Coil Material |
Al coil, Copper coil |
Coil Thickness |
0.2~1.5mm |
0.3~3.0mm |
Coil Width |
100~600mm |
300~1250(1600)mm |
Coil Weight |
≤5T |
≤20T |
Coil I.D |
φ508mm |
φ508mm |
Coil O.D |
≤φ1500mm |
≤φ1800mm |
Strip Width |
≥25mm |
≥25mm |
Number of Strip |
5~15 |
8~20 |
Slitting Accuracy |
≤±0.05mm |
≤±0.05mm |
Line Speed |
0~150m/min |
0~150m/min |
Electrical Control System |
PLC Automatic control |
